Function:
Used for general profile and colored profile corner welding,
and the micro-seam cleaning of colored profile
Features:
1. Specially
for welding the laminated PVC window profile with 0.2mm welding result.
2. Owning
welding and surface cleaning two function in one machine. High efficiency.
3. Special
designed cleaning cutter ensure nice cleaning result.
4. Max
welding height 260mm, suitable for welding some of over height PVC window
profile.
5. All
motion system is using high precision Square bearing system.
6. Pneumatic
brake device.
7. Solid
machinery base and structure ensure long life service with high dimension
accuracy.
8. profile
fixture ordered separately can meet various height profiles' processing
requirement
9. Special
profile fixture is easy to change, for high corner strength and later
good cleaning

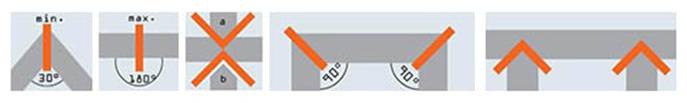

10. Widely
window type application as follows:
Parameter:
Input Voltage
|
1N~50Hz 220V
|
Input Power
|
3.5(kw)
|
Operation Air Pressure
|
0.5~0.8(MPa)
|
Air Consumption
|
40(L/min)
|
Welding Height
|
260 (mm)
|
Max Welding Width
|
110 (mm)
|
Welding range
|
460-4000mm
|
Overall Dimension
|
5100×1400×2100(mm
|
Machine Weight
|
750(kg)
|
|
|
Main accessory:
PLC
|
Omron
|
Electrical Button and Switcher
|
Schneider
|
Solenoid valve
|
SMC
|
Cylinder
|
JPC(FESTO Joint Venture Brand)
|
Temperature Controller
|
Japan Omron
|
Linear bearing system
|
Linear( South Korea brand)
|
AC Contactor
|
Schneider
|
Square bearing system
|
Linear (South Korea brand)
|
Standard accessory:
Heating Plate
|
2pcs
|
Complete tooling
|
1set
|
Teflon Cloth
|
several
|
Certificate
|
1set
|
Operation Manual
|
1set
|
|
|
