Features:

1. Top grade PVC window welding machine. Suitable for high quality PVC window manufacturer.

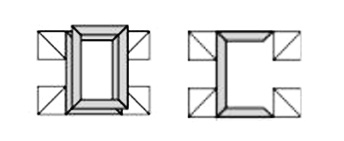

2. One working cycle, one frame or sash fully automatically.

3. 0.2mm & 2mm welding auto change through switcher.

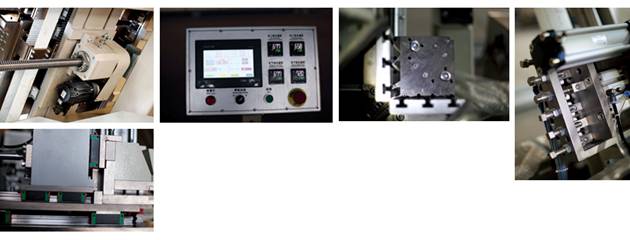

4. Unique stainless steel pinch knife and mechanical structure ensure nice 0.2mm welding.

5. Ball screw shaft ensure moving precision.

6. Square bearing system guarantee clamping, heating plate, locating plate moving precision & reliable performance.

7. The advanced IPC controlling system guarantee user-friendly operation, high precision, long life service , and easy link to other machines or production units.

8. Auto positioning by word wide famous brand AC servo motor.9. Solid machinery base and structure ensure long life service with high dimension accuracy.

10. Imported linear bearing system kept the running stable

11. Size tolerance compensation is available to increase welding precision

12. Vertical type is an ergonomically favorably position for the operator inserting upper profile.

13. Easy profile loading through pre-setting the insertion position.

14. profile fixture ordered separately can meet various height profiles' processing requirement

15. Special profile fixture is easy to change, for high corner strength and later good  cleaning

16. Special “Know — How” technique keep the high corner strength

17. Advanced “Parallel welding “technique improves welding strength.

Parameter:

Main accessory:

Standard accessory:
