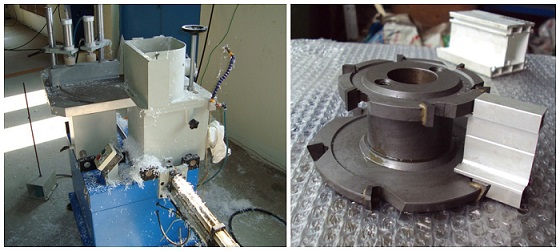

End Milling Machine TFS-200

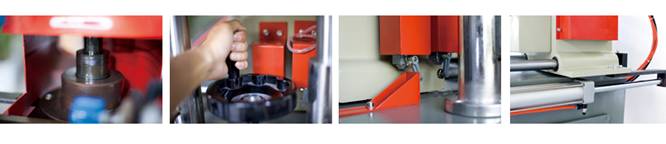

Features:

1. For end milling of transom and door frames in PVC profile.

2. Automatic feeding. Standard pneumatic cylinder. Optional hydro-pneumatic cylinder.

3. Two vertical clamping ensure stable positioning.

4. Cutter easily changing for various profile.

5. Various angle mullion milling for arch window or other special shape window.

6. Hand wheel for different height adjustment.

7. Safety covers on the milling cutter.

8. Optional model (TEM200) with twin milling head on one base suitable for massive production.

Parameter:

Air Pressure	0.5～0.8(MPa)	Air Consumption	10(L/min)
Input Voltage	380V 50Hz	Main-shaft Revolution	2800(r/min)
Input Power	1.5(kW)	Max Processing Height	100mm
Cutter Spindle Travel	36mm	Locating plate rotating angle	-55 to +55 degree
Overall Dimension	1150 x 1150 x 1700 mm	Weight	240(kg)

Main accessory:

Solenoid Valve	SMC	Cylinder	JPC(FESTO Joint Venture Brand)
Motor	Anhui Sanyang	Approach Switcher	Japan Omron
Electrical Button and	Schneider	AC Contactor	Schneider

Standard accessory:

Air Gun	1pc	Complete tooling	1set
Operation Manual	1pc	Certificate	1pc
