Crimping Machine US-120

Features:

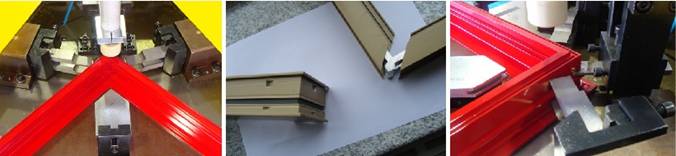

1. Used for crimping the 90 corner of aluminum window and door

2. Adopt new mechanical linkage device ,realized complete synchronous corner combining

3. Adjustable locating device suitable for various sections and sizes processing

4. Left and right punching heads adopt hard synchronous feeding device ,thus avoided useless

5. deformation and made the connection more firmly.

6. Easy machine setting due to the synchronous feeding device.

Main specification and technical parameter

Power supply	380V 50Hz	Motor power	1.5KW
Rated oil pump pressure	16Mpa	Motor rotational speed	1400r/min
Model of the oil pump	2.5MCY	Profile processing height	(Max)120mm
Profile processing width	90mm	Total combining pressure	0.5-0.8Mpa
Air consumption	2L/min	General pressure of corner combining	48KN
Corner combining casing movement journey	85mm	Weight	300kg

Main accessory:

Hydraulic station

Taiwan brand

Electrical Button and Switcher

Schneider
