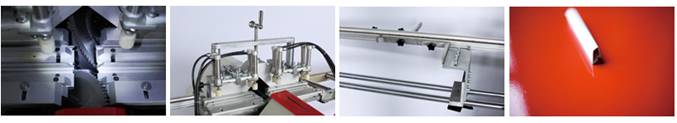

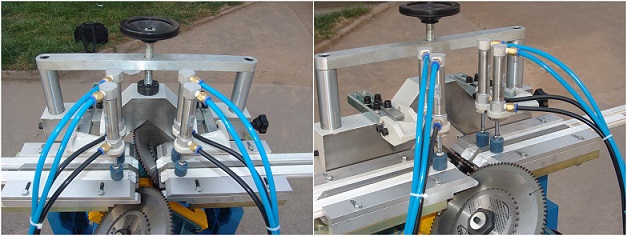

    • Glazing Bead Cutting Saw OSS-1800

    Features:

    1. Automatic 45 degree cutting u-PVC glazing bead profile.

    2. Two glazing bead cutting in one time.

    3. Automatic saw blade feeding by pneumatic cylinder and moving on precise rod.

    4. 4 pieces saw blade ensure precise cutting, Double cutting one each end to mill the hook foot.

    5. Vertical clamping device and special designed cutting jig ensure stable positioning.

    6. Two hand safety operation

    7. Friendly using measuring rod.



    Parameter:

    Air Pressure

    0.5～0.8(MPa)

    Air Consumption

    20(L/min)

    Input Voltage

    380V50Hz

    Input Power

    1.1(Kw)

    Spindle Rotary Speed

    2800(r/min)

    Cutting Height

    33(mm)

    Cutting Width

    100(mm)

    Cutting Length

    320～1800(mm)

    Weight

    250(kg)

    Overall Dimension

    1500×750×1500mm




    Main accessory:

    Saw blade

    Japan UNIKEN or WAGEN

    Solenoid valve

    SMC

    Cylinder

    JPC(FESTO Joint Venture Brand)

    Electrical Button and Switcher

    Schneider

    Standard accessory:

    Saw blade

    4pcs

    Measuring Rod

    1 set

    Air Gun

    1pc

    Complete tooling

    1set

    Certificate

    1pc

    Operation Manual

    1pc
